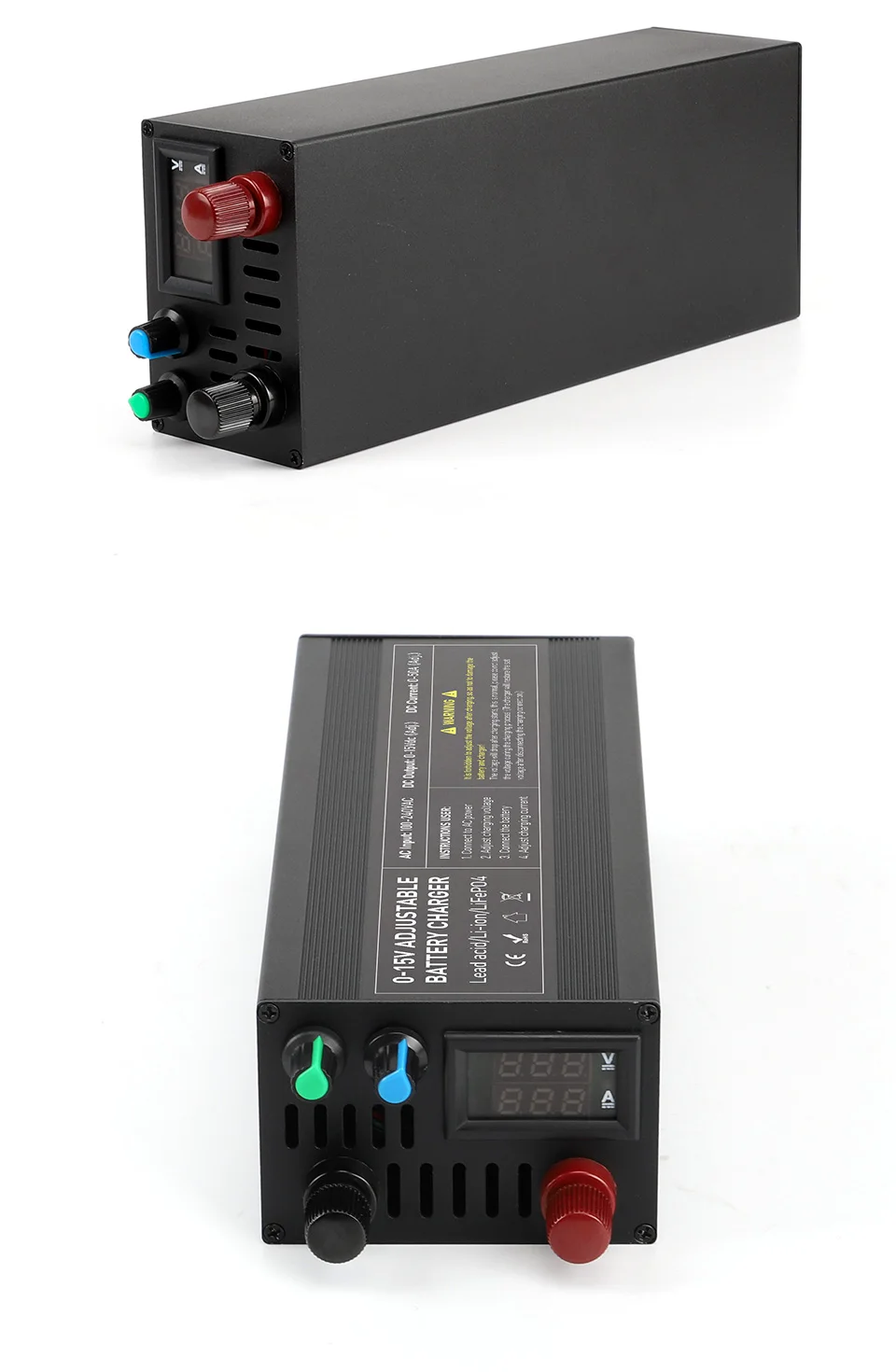

12V Lifepo4 Charger 12.8V/14.6V 60A 100A Battery Charger 100A Fast Charger 100V-220V Current and Voltage Dual Display Adapter
Welcome to the factory directly operated store, capability.Li is our brand, we have lithium batteries, lithium iron phosphate batteries and other processes. We accept custom batteries and we cannot update all items here. If you have other requirements, please contact the customer and tell me your requirements (power/battery capacity/voltage/weight/continuous discharge current of external equipment), we will customize it for you. Thank you for coming, thank you!
Host Description:

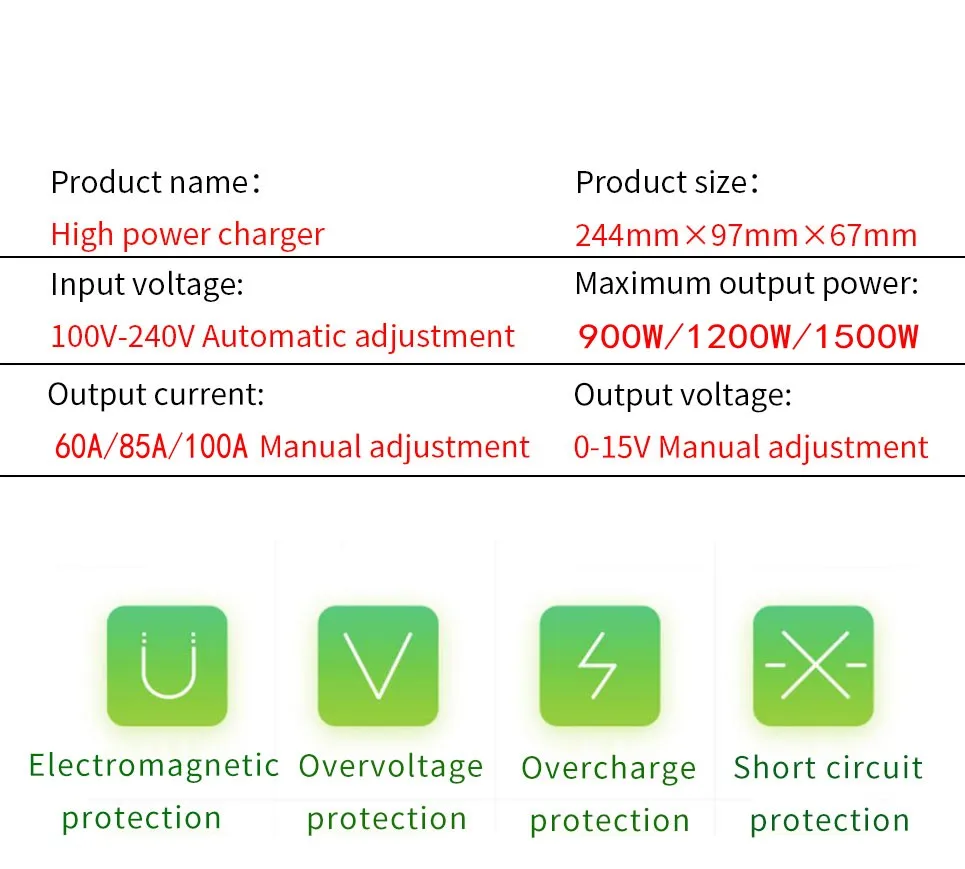

Input voltage: AC 110V-220v/250v
Input power: 60A and 50A
Output voltage: DC constant voltage meets 2.6V-14.6V (1S to 3S Li-ion Lipo and 1S to 4S Lifepo4)

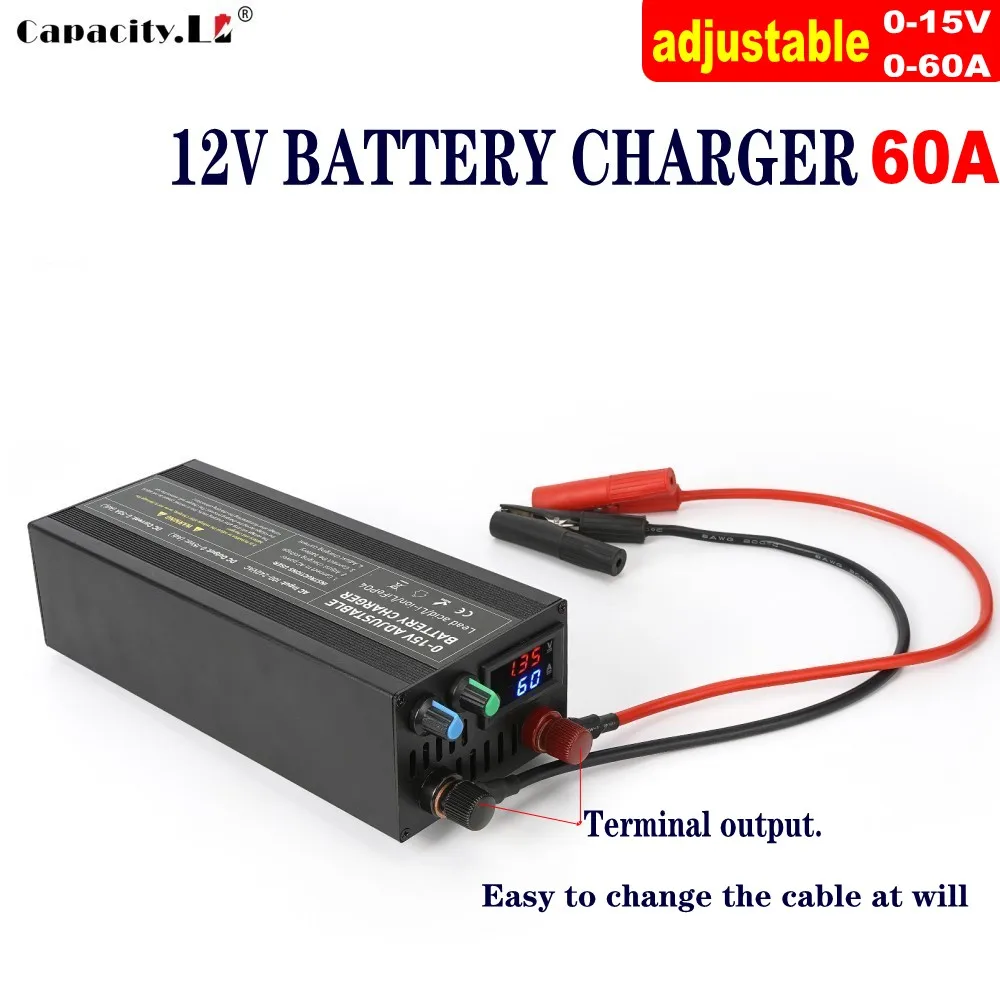

Output current: DC constant current 1-62A (1-50A) adjustable. (The charger can only be constant current and constant voltage)
Protection mode: constant current output after positive and negative pole short circuit

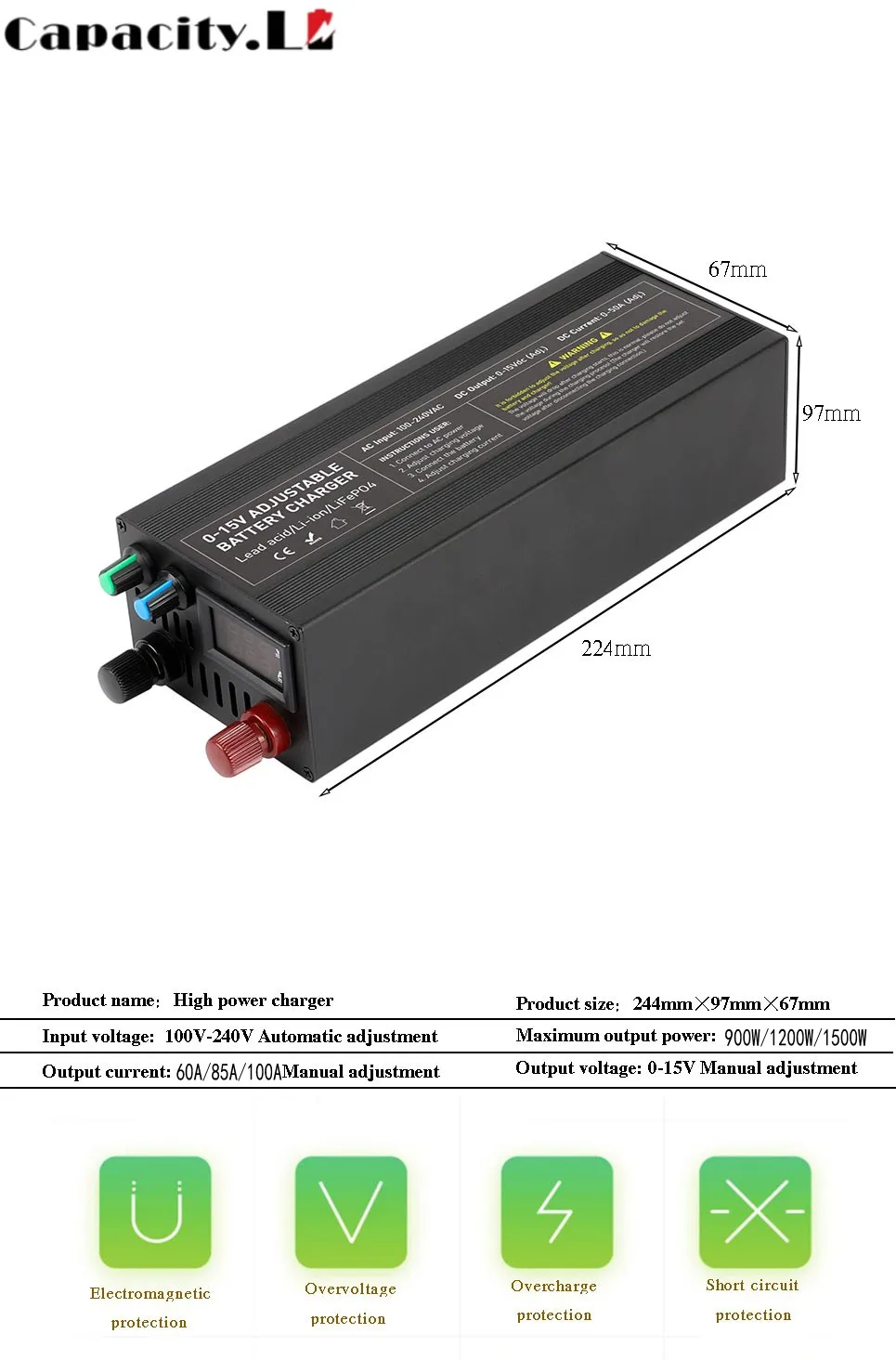

Appearance size: length 263x67x97 (mm)(60A/50A)
Cooling method: air cooling Accessories

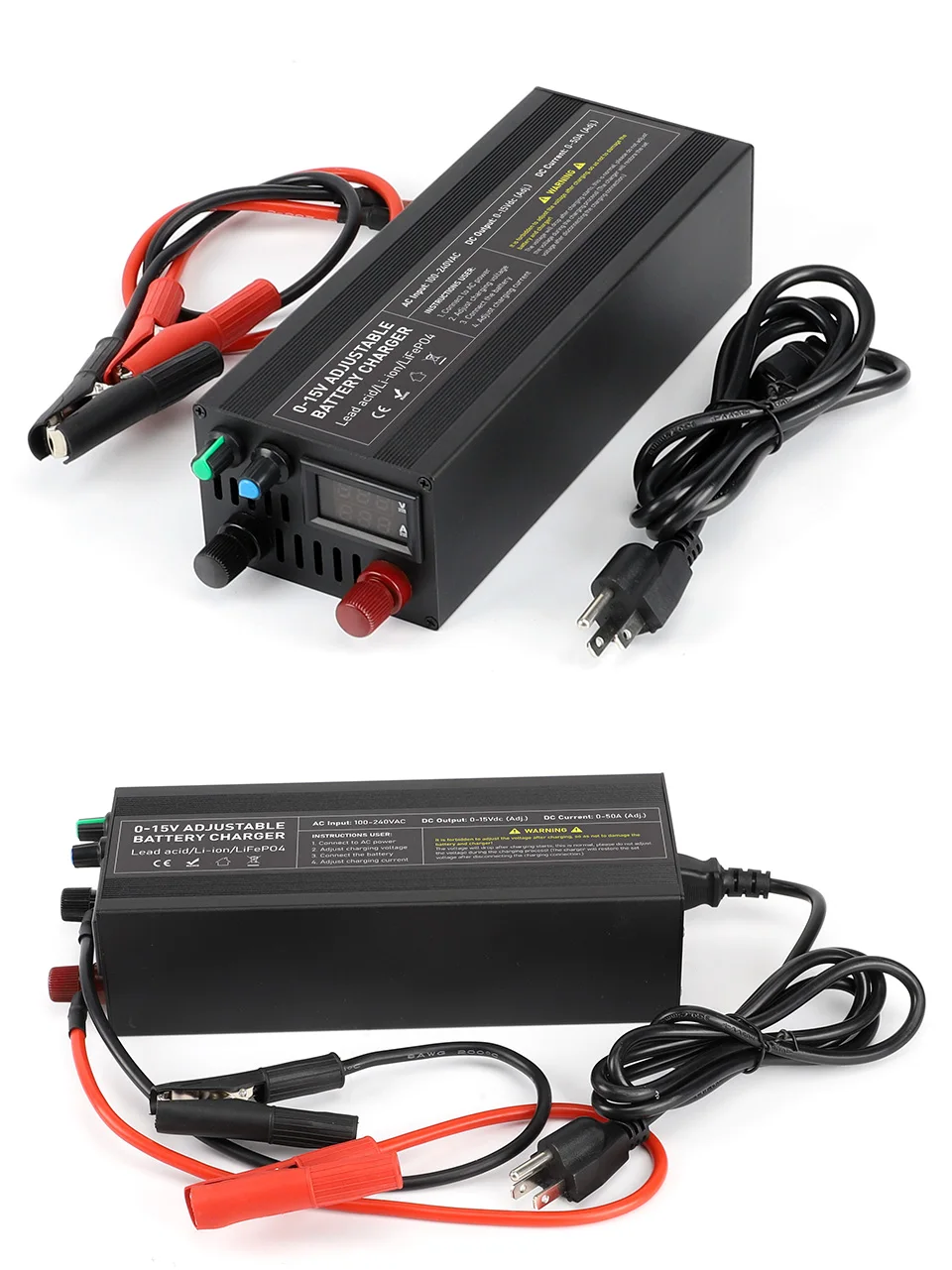

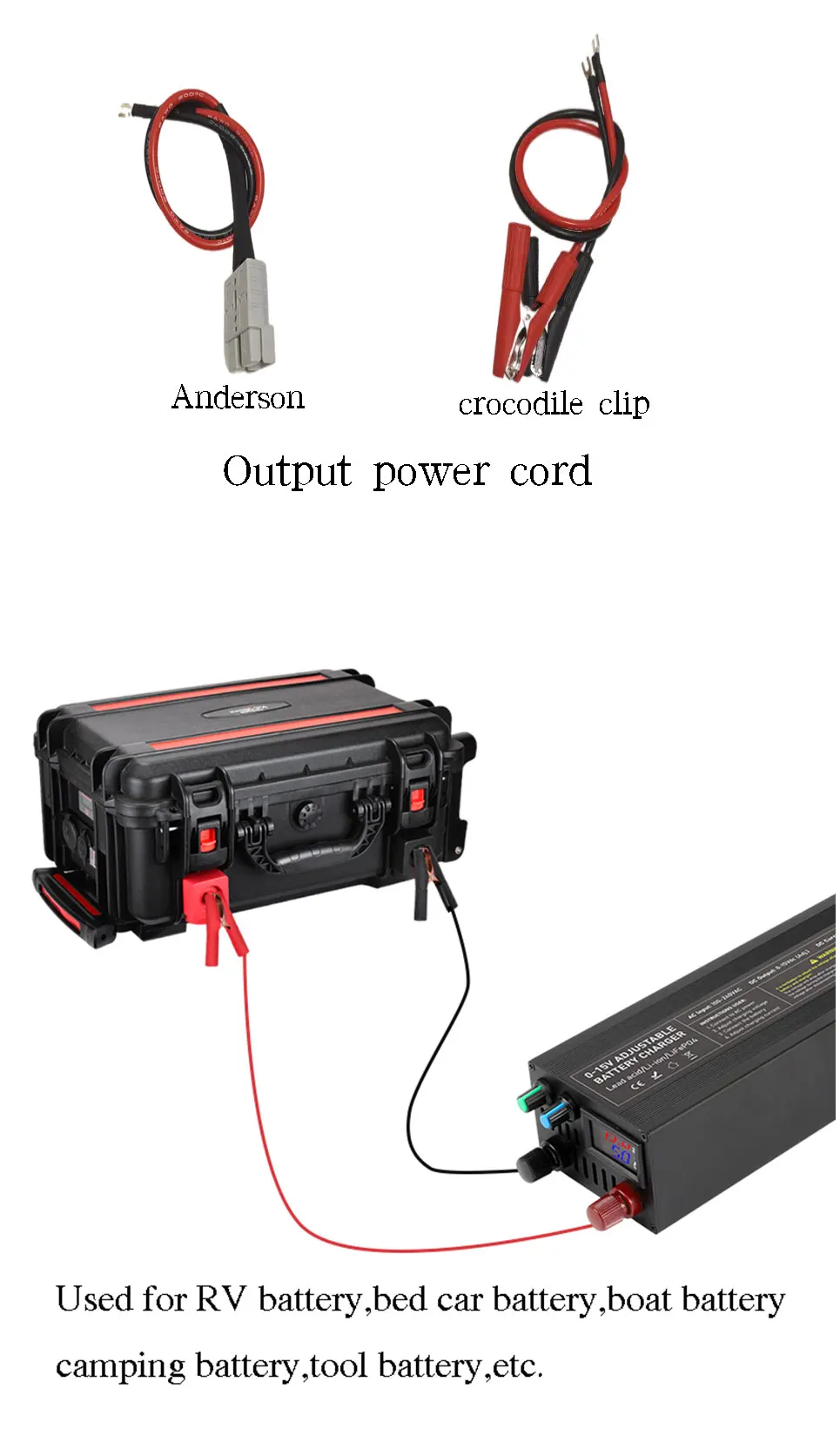

Host/power cord (European standard, American standard optional)/clip (optional)/Anderson (optional)

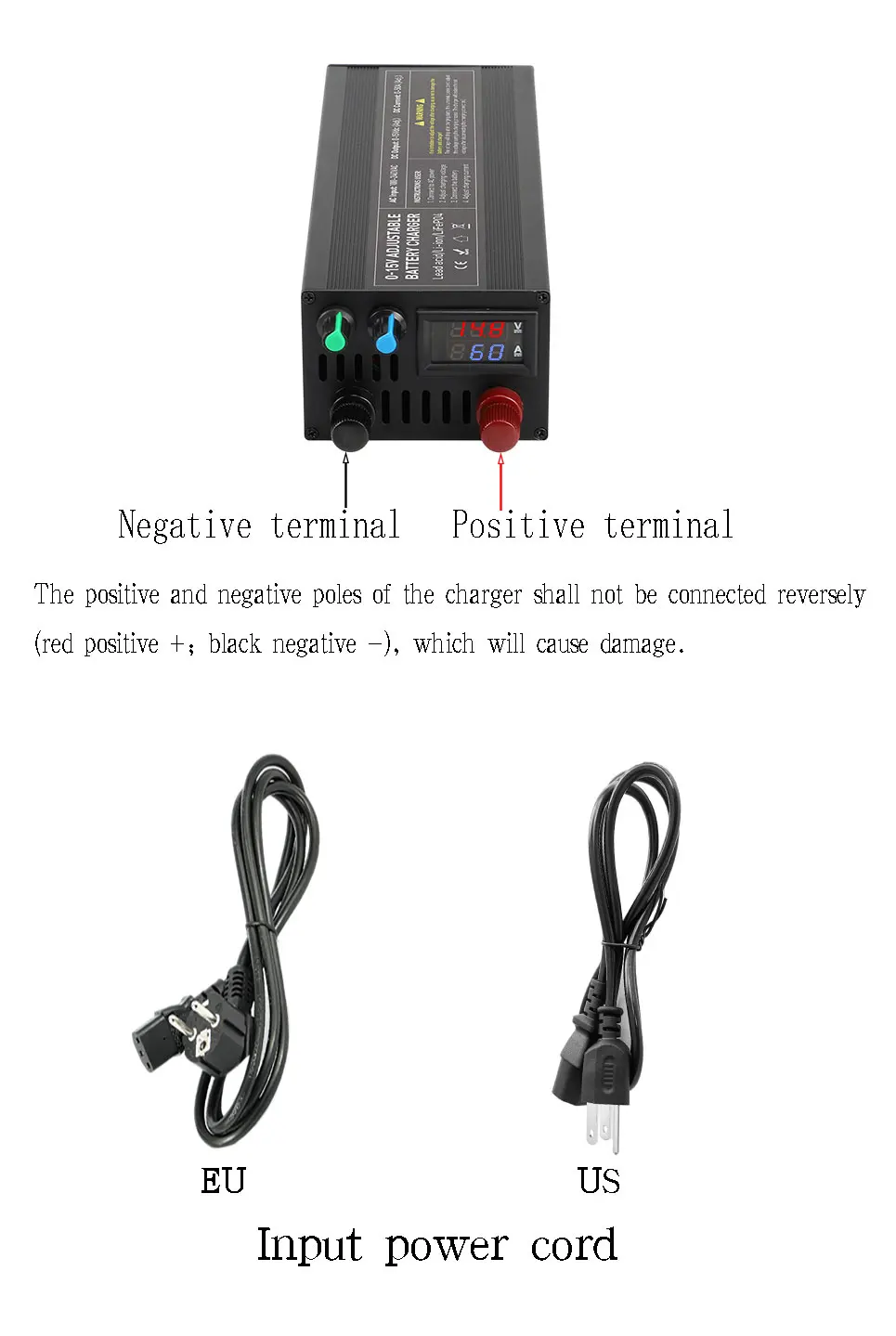

Note: (important things are repeated three times!) The positive and negative poles of the battery cannot be reversed (red positive +; black negative -) .
Reverse connection will cause damage (damage is not guaranteed). AC 110V-250V.
Packing List:

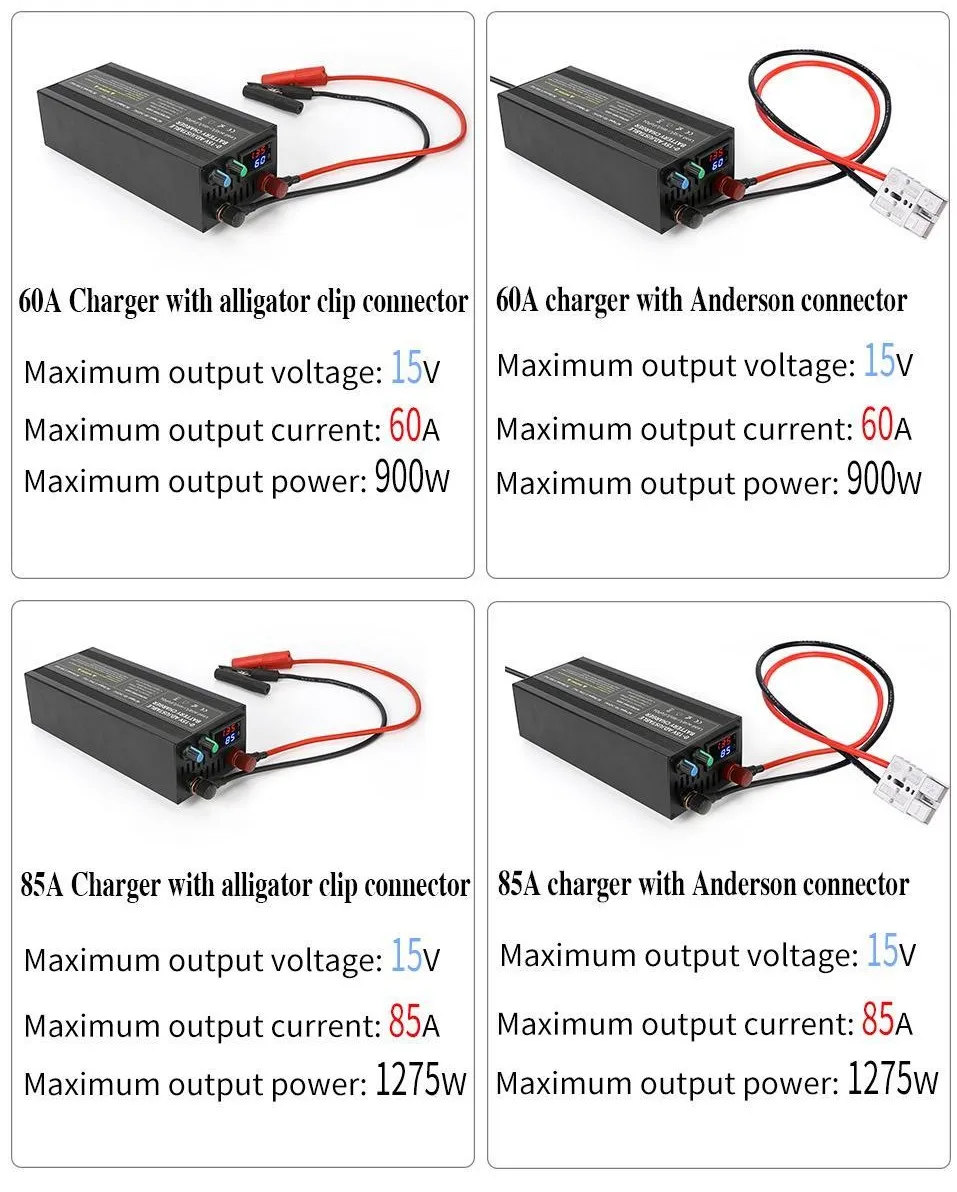

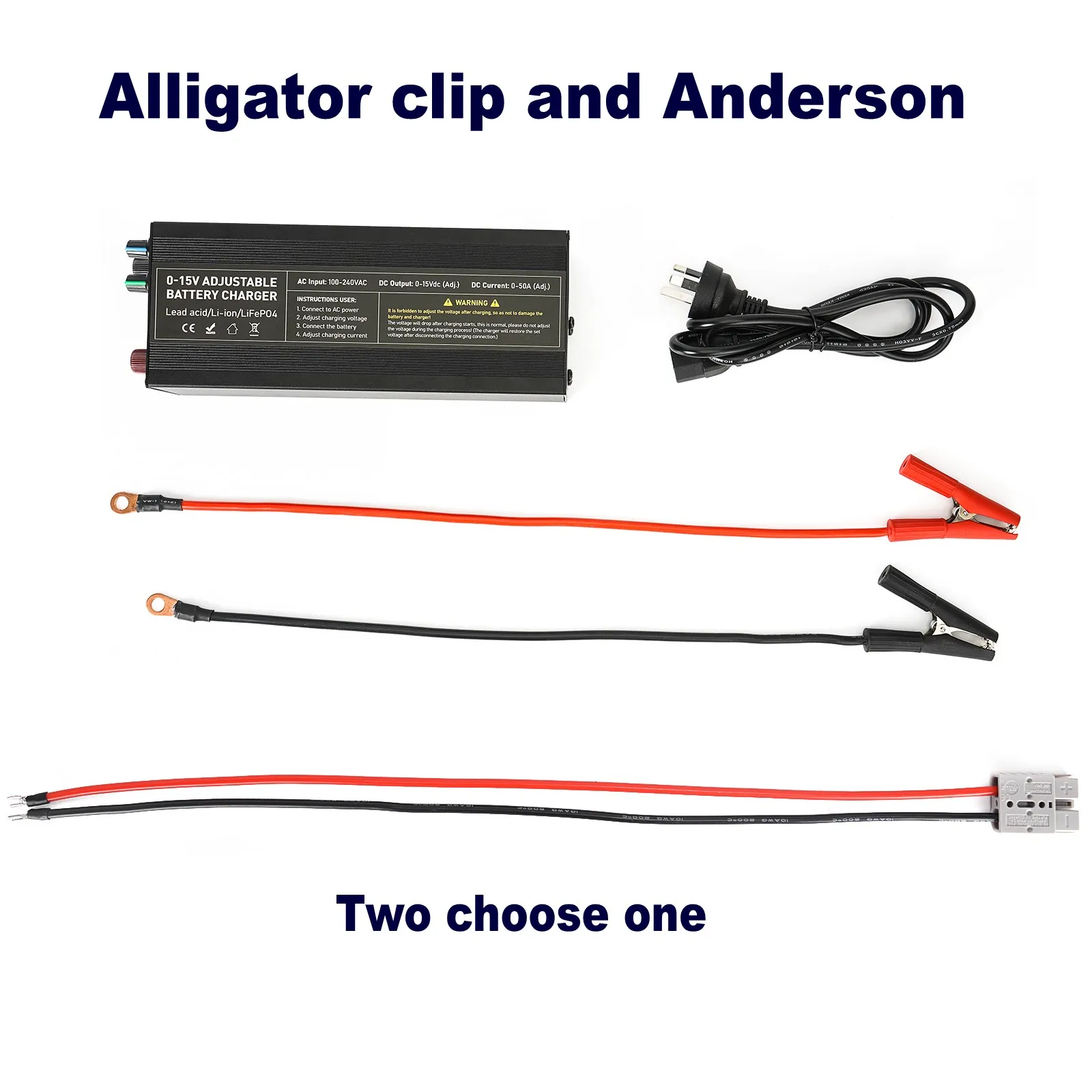

1PCS X Charger with Clip Or Anderson

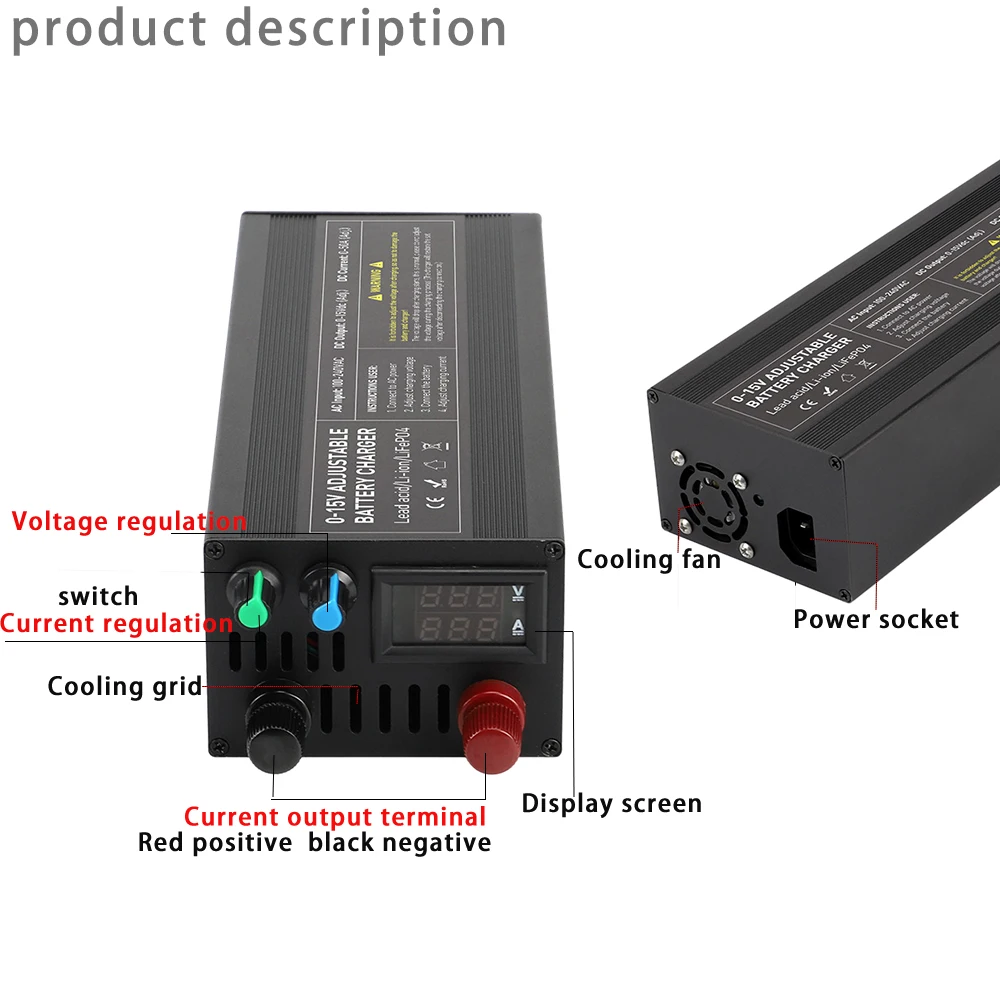

Special instructions for 60A/100A chargers: first plug the charger into the power supply-----look at the voltage---adjust the voltage-----then connect the load-----and then adjust the current.
Step1: Do not connect the battery to the charger, turn on the power, adjust the voltage knob to adjust the voltage, refer to the voltage display at the top of the display, (4S lifepo4 battery 3.65 v*4=14.6V, 3S lithium battery 4.2v *3=12.6V), adjust to the voltage you need (you can adjust the voltage in combination with a multimeter. The display will have a small error.).

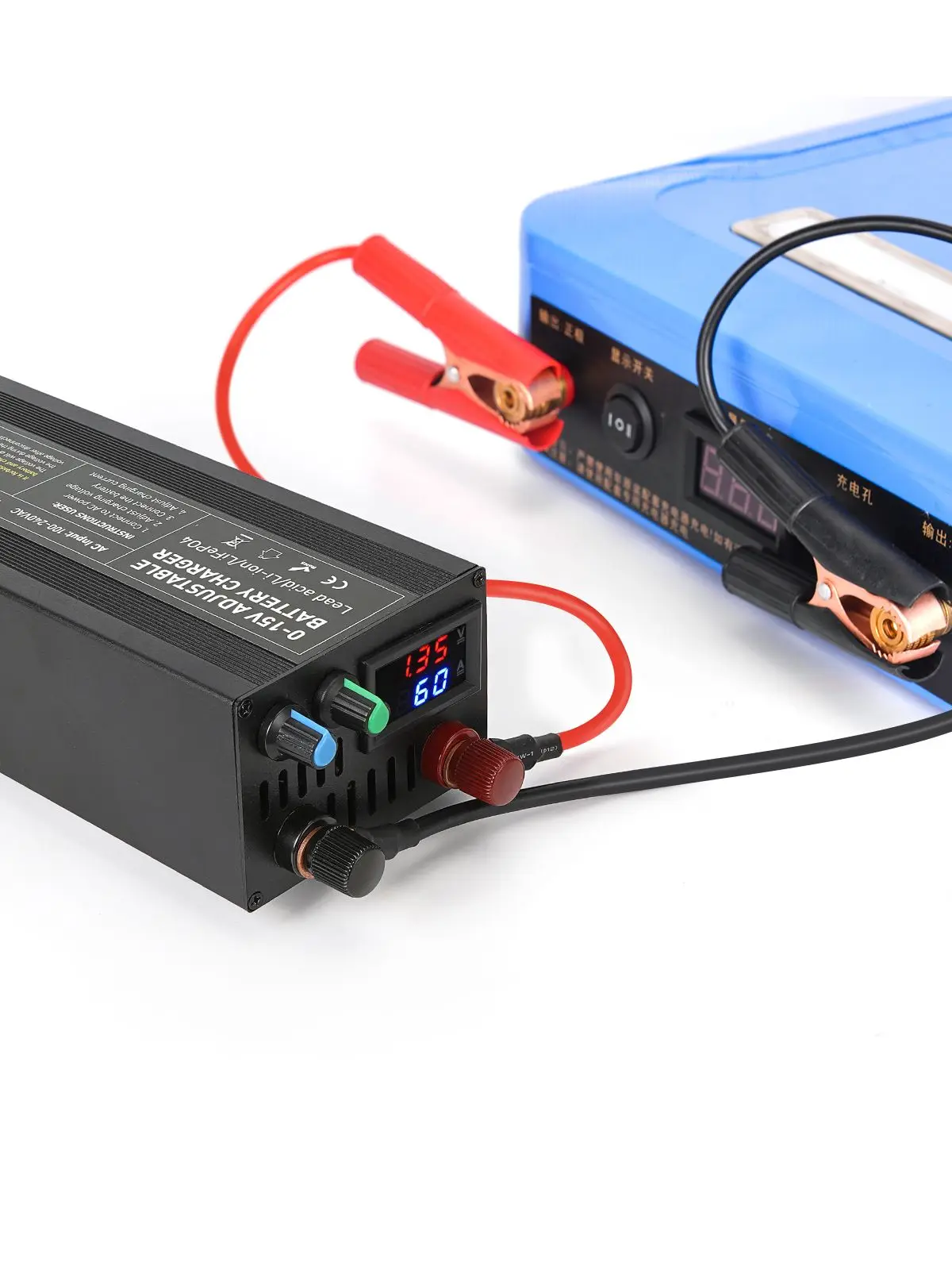

Step2: Adjust the current to the minimum. After connecting the battery, adjust the current from small to large to the current you need. (It is not allowed to adjust the voltage knob again during the charging process, otherwise there will be overcharge or undercharge, which may burn the host) If the voltage is displayed and the current becomes zero, it means that it is fully charged.
Step3: When using it later (the voltage has been set for the first time, no need to set it later) ------- connect the battery first (very important, it can protect the charger) ------- then connect the power supply- ---------Follow this step for later use, no need to adjust the voltage and current (unless you want to modify it)
Do not adjust the charger voltage while charging. The voltage of the charger itself fluctuates, and it is normal to charge the battery with constant voltage. When the battery is fully charged, the current on the charger display will show zero or near zero. If you do not understand, please consult customer service!
To extend the life of the charger. The charger has a voltage of 220V, and the maximum recommended current is 90%, for example, 60A. It is most suitable to adjust it to about 54A. The maximum recommended voltage and current of 110V is 80%, and the maximum recommended voltage and current of 100V is 70%.
Video operation method: https://youtu.be/yjw-F0yLt-8
